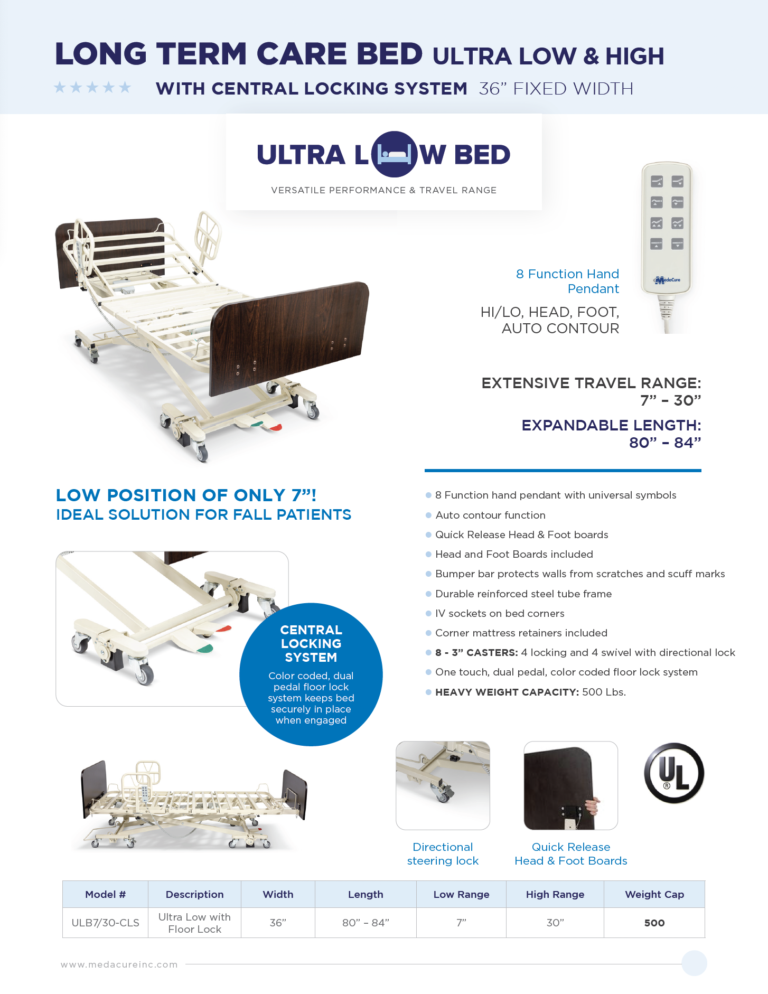

VersatileUltra Low and HighLong Term Care Bedwith Floor Lock SystemULB7/30-CLS

CENTRAL LOCKING SYSTEM

Color coded, dual pedal floor lock system keeps bed securely in place when engaged
Ultra low position of only 7”
High position to 30″
4 Function electric bed – hi/lo, head, foot and auto contour function
8 Function hand pendant with universal symbols
Quick release head and foot boards
8 – 3” Durable Casters: 4 Swivel and 4 Locking Casters With Directional Lock
Durable reinforced rectangle tube steel frame
IV socket on bed corners
Bumper guard on head end protects walls from mars and scratches
Linak actuators and controls
Bed boards and QBar assist bars – included
Boards come in Mahogany, Amber Cherry and Maple

Function	Specification
FUNCTIONS	8 FUNCTION ELECTRIC – HI/LO, HEAD, FOOT, AUTO CONTOUR
MATTRESS DECK DIMENSIONS	80″ L X 36″ W
BUILT-IN WIDTH EXPANSION	NO – FIXED WIDTH 36″
BUILT-IN LENGTH EXTENSION	80” – 88”
LOW RANGE	7”
HIGH RANGE	30″
ACTUATOR BRAND	LINAK
WEIGHT CAPACITY	500 LBS.
CASTORS	8 x 3” CASTORS, 4 LOCKING / 4 SWIVEL
UNDERBED CLEARANCE	5”
WARRANTY	15 YEAR ON FRAME; 3 YEAR ON ELECTRONICS; 1 YEAR PENDANT

Part #	Description	Comments
L6000N-150-320	HEAD MOTOR – LINAK
L6000N-100-270	FOOT MOTOR – LINAK
L8000N-295-465	HI/LO MOTOR – LINAK
L-CA40	CONTROL BOX – LINAK
L-RHS-4	REMOTE – 4 FUNCTION – LINAK
L-PC	POWER CORD – LINAK
HFBULB7	HEAD & FOOT BOARD SET- INCLUDING QR BRACKETS
QR-2	QUICK RELEASE BRACKETS WITH HARDWARE	X 4
MR-C	MATTRESS RETAINERS (SET OF 4)
CA-3W	CASTOR 3″ W/O BRAKE	X 4
CA-3B	CASTOR 3″ WITH BRAKE	X 4
LEB-R	LENGTH EXTENSION BAR – RIGHT SIDE
LEB-L	LENGTH EXTENSION BAR – LEFT SIDE
LEBR-M7	LENGTH EXTENSION BRACKET FOR MATTRESS
SK-S	STAR KNOB – FOR LENGTH EXTENSION	X 2
CB-ULB7-48-30	CASTOR BASE
HD-ULB7/30	HEAD DECK (# 1)
SD-ULB7/30	SITTING DECK (# 2)
KD-ULB7/30	KNEE DECK (# 3)
FD-ULB7-7/30	FOOT DECK (# 4)
ULB7-SBG	STEEL BUMPER GUARD

Versatile
Ultra Low and High
Long Term Care Bed
with Floor Lock System
ULB7/30-CLS
