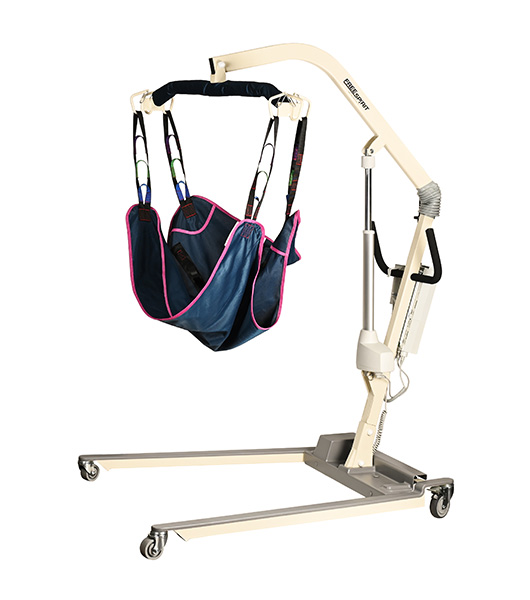

Free Spirit Bariatric Patient Lift
2 reviews

Dual purpose patient lift for the standard and bariatric patient. The Free Spirit is a durable, secure and sturdy 660 lb. capacity patient lift and is perfect for a facility with multiple needs. Provides a safe alternative to manual lifting for both the caregiver and patient. Dual motors raises/lowers the patient from floor to 70″ high. Power base expands from 28″ – 45″ ultra wide.

Model # FS660-T

This product is currently out of stock and unavailable.

Features
  • Dual motors power the lift range and legs to open and close

  • Ultra wide leg opening easily wraps around bariatric wheelchairs and equipment

  • 50” extra long leg length for increased stability

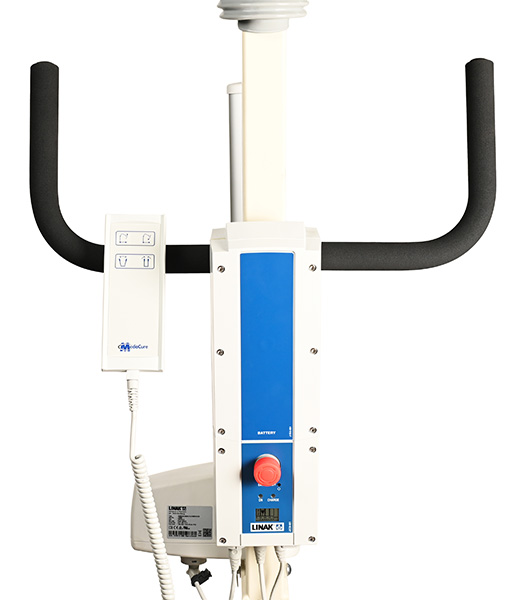

  • Oversized soft foam handle for increased control when moving the lift

  • Emergency stop button locks the lift in place

  • CPR function lowers and raises the lift when the battery is discharged

  • Total pinch point protection

  • Padded swivel bar protects residents head

  • Quick release battery eliminates downtime

  • Battery can be replaced immediately with separate charging base

  • Battery can also be charged on board

  • LED’s show battery charge level

  • Charger case stores the charger plug on the lift

Specifications
Function Specification
LIFTING RANGE 28″ – 70″
BASE WIDTH 45″ (OPEN) / 28″ (CLOSED)
POWER BASE YES
CASTER SIZE FRONT: 3″ SWIVEL / REAR: 4″ LOCKING
BED CLEARANCE 4.5″
ACTUATOR BRAND TIMOTION
WEIGHT CAPACITY 660 LBS.
WARRANTY 15 YEAR ON FRAME; 3 YEAR ON ELECTRONICS; 1 YEAR PENDANT









Parts List
Part # Description
FS660T-H/L T-MOTION HI/LO MOTOR
FS660T-B T-MOTION POWER BASE MOTOR

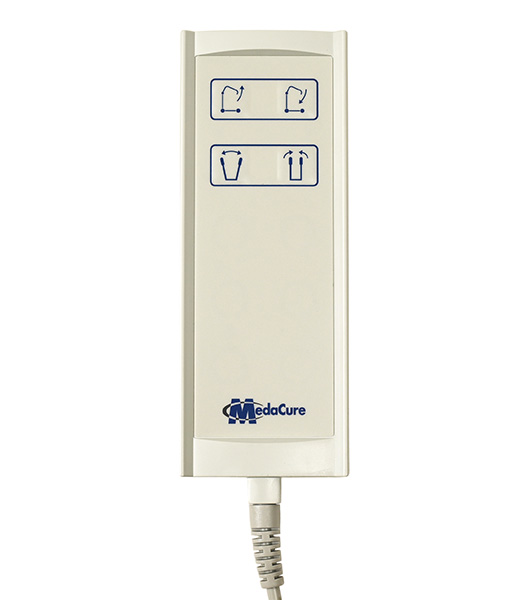

FS660T-RC PENDANT
FS660T-B BATTERY
FS660T-CB CONTROL BOX
FS660T-CH CHARGER PLUG
FSCB CHARGING BASE
DS1100 DIGITAL SCALE
FS660-C3 FRONT CASTOR – 3″
FS660-C4 REAR LOCKING CASTOR – 4″
FS660T-CH/P CHARGER POUCH

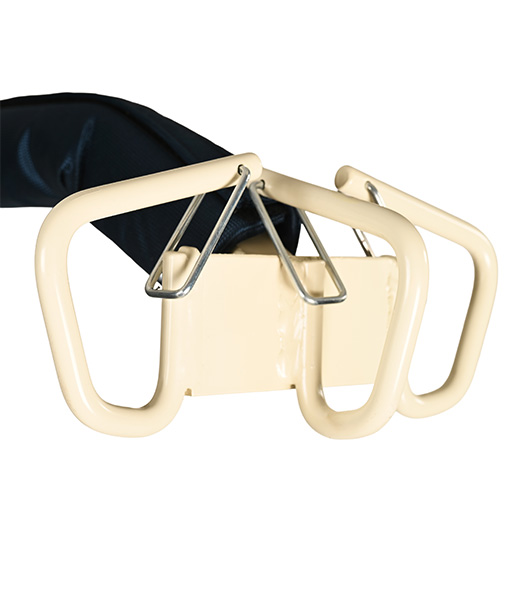

FS660T-HA/B HANGER BAR
FS660T-HA/C HANGER BAR COVER
FS660T-CB/B BRACKET FOR CONTROL BOX
FS660T-CPP COVER FOR PINCH POINT
FS660T-PC/B PLASTIC COVER – BACK OF BASE
FS660T-PC/L PLASTIC COVER – LEG
