Oasis
Alternating Pressure
Low Air Loss
with 3″ Foam Base

Provides excellent wound care therapy with a combination of Alternating Pressure and Low Air Loss. 20 air cells with 17 alternating pressure cells and 9 low air loss cells, Oasis is designed to be used in the prevention, treatment and management of pressure ulcers. Includes snap-in/snap-out replaceable cells. The air mattress has a high-density 3″ foam base that prevents “bottoming out” and sagging. The base is encased in a separate waterproof compartment to reduce the risk of cross-contamination and ensure easy cleaning.

Model # OA400-FB
Features
Mattress
  • 5” High Replaceable Cells

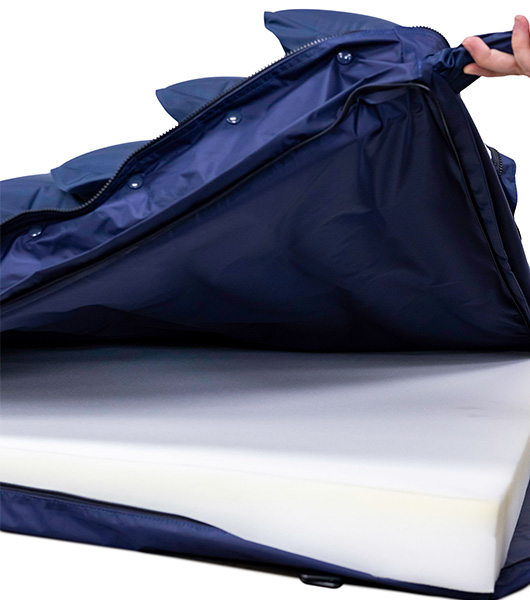

  • 3″ High Density foam base provides a stable, supportive surface
  • Alternating Pressure Therapy with 8 Low Air Loss Cells

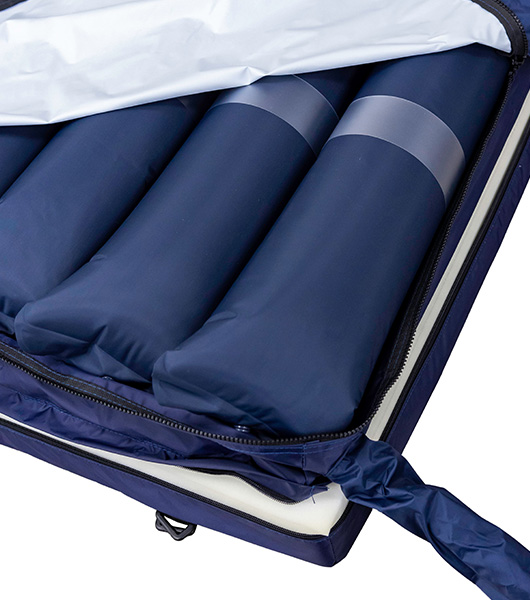

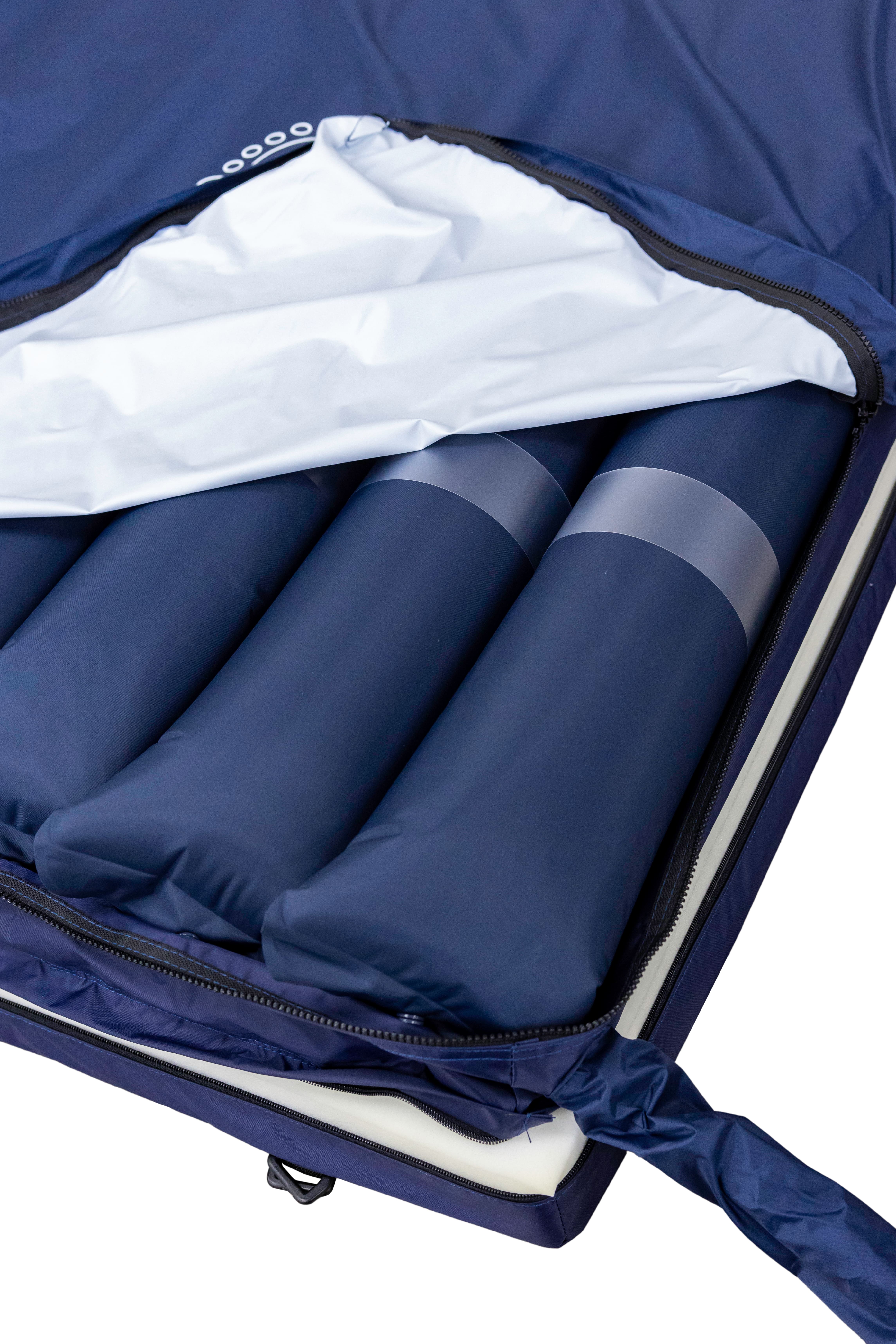

  • EZ replaceable snap-in/snap-out cells

  • Pillow Function – Top 3 cells remain static for patient comfort

  • Adjustable straps secure mattress to bed frame

  • CPR quick deflate function

Pump
  • PRESSURE CONTROL KNOB
    with 8 pressure levels

  • PRESSURE RANGE
    30 mmHg – 60 mmHg

  • ADJUST THERAPY LEVEL
    by patient’s weight or firmness

  • 8 adjustable pressure levels

  • Easy Filter Replacement

  • Wide Hanging Hooks fit multiple board widths

  • Hanging Hooks fold back when not in use

  • Sleek space saving pump

Specifications
Function Specification
Alternating Pressure 17 Alternating Pressure Cells + Top 3 Cells Remain Static
Low Air Loss 9 Ventilated Low Air Loss Cells
Total Number of Cells 20
Cell-on Cell No
Cycle Time 10 Minutes
Cell Material Nylon/PVC
Cover Material Nylon PU Withe zipper
Base Material Woven with Anti Slip base
Treatment Effective Through Stage II
Bariatric No
Mattress dimensions 80″ L x 36″ W x 8″ H
Pump dimensions 11″ x 5″ x 6″
Pump weight 4.8 Lbs.
Power cord length 15 Feet 120V/60 Hz Medical grade cord
Air Output Over 8 LPM
Weight capacity 350 Lbs.
Warranty 18 Months
Parts List
Part # Description
OA200-C-P OASIS PUMP
OA200-C-M SPARE MATTRESS FOR OS200-C
OA400C SPARE COVER
SC-LAL-OA200-C SPARE CELL FOR OA200-C
PCOA CORD FOR OASIS
OACN PLASTIC HOSE CONNECTOR OASIS
OACPR CPR STRAP
